頂部振打(錐形)瓷絕緣子軸圖
電除塵器設備配套絕緣子，以95%氧化鋁為主要原料，經1700℃高溫燒成，具有機械強度高、介電強度高、耐酸堿、耐高溫的優點。主要適應于電力、冶金、化工、有色金屬等行業的頂部振打靜電除塵器。
The electric dusters are made from 95AI2O3 ceramic formulas as the main raw materials, molded in advanced cold isostatistically press technology, sintered at more than 1700℃ in high temperature tunnel kiln. They have the excellence of high mechanical strength, good thermal conduction, abrasion resistance, acid and alkali proof,high temperature resistant and high dielectric strength ets. They are widely used in static duster equipment for building materials, electric power, metallurgy and chemical industry.

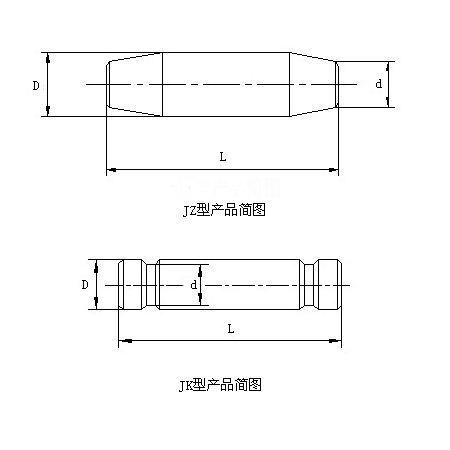

技術指標 Main technical data
|
型號Type |
錐度Chamfer |
主要尺寸 Main dimension |
|
D |
d |
L |
|
JK1-520 |
|
75 |
63 |
520 |
|
JZ3-520 |
Morse No.3 |
70 |
- |
520 |
|
JZ8-600 |
1:8 |
70 |
- |
600 |
|
JZ8-520 |
1:8 |
60 |
- |
520 |
|
JZ5-500 |
1:5 |
60 |
- |
500 |
|
JZ5-430 |
1:5 |
60 |
- |
430 |
本公司專業生產優質頂部振打(錐形)瓷絕緣子軸等特種陶瓷產品，歡迎購買頂部振打(錐形)瓷絕緣子軸產品到湖南株洲湘龍新材料有限公司來！
